STEALTH CUSTOM SERIES
STEALTH CUSTOM SERIES - F5
STEALTH CUSTOM SERIES - F5
Regular price
$0.00 CAD
Regular price
Sale price
$0.00 CAD
Quantity
Couldn't load pickup availability

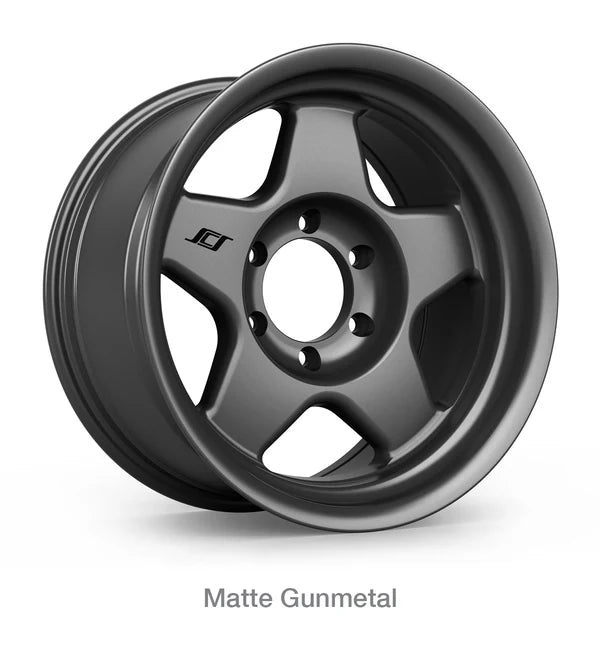

The traditional 5-star wheel is reimagined with our F5 model. We based this model on a classic form, but pivoted it around the no-center-cap concept to emphasize the off-road-ready appeal. Being hubcentric and incredibly lightweight at just over 18 lb, the F5 model sets new standards for form and function in wheel design.
Available in the following fitments:
TECH SPECS
| SIZE | BOLT PATTERN | SPACING/OFFSET |
CENTER BORE |
WEIGHT |
|---|---|---|---|---|
| 16 x 8.0 | 5 x 150 | 4.90"/+10 |
110.1 |
18.5 lb |
| 16 x 8.0 | 6 x 139.7 | 3.50"/-25 | 106.1 | 18.0 lb |
| 16 x 8.0 | 6 x 139.7 | 4.50"/+0 | 106.1 | 18.5 lb |
| 17 x 8.0 |
5 x 114.3 |
5.30"/+20 |
60.1 |
19.5 lb |
| 17 x 8.5 | 6 x 139.7 | 5.50"/+20 |
95.1 | 21.5 lb |
| 17 x 8.5 |
6 x 139.7 | 4.30"/-10 | 106.1 |
21.5 lb |
| 17 x 9.0 | 6 x 139.7 | 3.50"/-38 | 106.1 |
22.5 lb |
| 18 x 9.0 | 6 x 139.7 | 5.50"/+12 | 95.1 |
26.0 lb |
| 18 x 9.0 | 5 x 150 | 6.00"/+25 | 110.1 |
24.5 lb |
Price: $375-500 CAD
Construction: Flow Form
Hubcentric: Yes
Max load: 1620-2500 lb
NOTE: THE F5 IS A DIRECT FIT ON LOCKING/FREE WHEELING AND TOYOTA DRIVE FLANGE STYLE HUBS. DETERMINING FITMENT IS THE RESPONSIBILITY OF THE CUSTOMER.
